Description

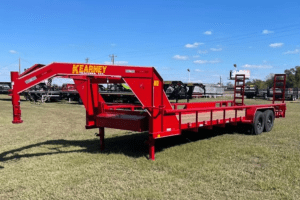

Kearney Trailers Gooseneck Tandem Heavy Duty Lowboy Utility Trailer

• COUPLER: 2-5/16″ – GN Adj. W/Safety Pin & 2 – Set Screws
• PLUG: 7 – Way Molded Plug Harness / Grounded To Frame
• SUSPENSION: Equalizer W/5 Leave Slipper Springs System
• TIRES: New ST-235-80-R-16″ Radials Load Range “E” 10-Ply
• TIE DOWNS: 10 – 3″ Stake Pockets (5 – Ea. Side)
• RAMPS: 4′ – 3″ HD Channel Iron Slide In Ramps W/Holders
  2 – Ramp Hanging Rod Lips On Back
• UPRIGHTS: 3″ X 2″ X 3/16″ Angle Iron / 20″ Tall
• STICKERS: Warning & Safety/Dot & Reflective Kearney Logos
• TRIM: Array of many colors to choose from
• SAFETY CHAIN: 3/8″ Chain W/Safety Hooks
• LIGHTS: “LED” Rubber Mounted Running, Stop, Turn & Clearance
• AXLES: Two – 7K Dexter Axles / Cambered W/Accu-Lube Hubs
• WHEELS: 8 – Hole Powder Coated Silver Mods
• STORAGE: Toolbox W/Lockable Lid Between GN Risers
• FRAME: 20′ & Smaller – 5″ X 3″ X 1/4″ Angle Iron
  24′ – 5″ X 3″ X 5/16″ Angle Iron
  26′ & Larger – 6″ X 4″ X 3/8″ Angle Iron
• TOP RAILS: 24′ & Smaller 3″ Pipe Sq-End W/Board Holders
  26′ & Larger 3″ Sq-Tubing Sq-End W/Board Holders
• EXT. FINISH: Painted With A Newly Innovated Durable High Gloss
  Acrylic Polyurethane Full Two-Component Finish
• WARRANTY: A Limited Two Year Kearney Guarantee
• JACK: Two – 12K Spring Loaded Drop Leg W/Sand Foot
• FENDERS: 9″ X 72″ 14Ga Straight Tread Plate W/Smooth Backing
• BRAKES: One – Electric Brake W/Break Away & Charger
• SPARE MOUNT: Securely Mounted Inside Neck (Mount Only)
• NECK: 12″ X 14# I-Beam Neck & Risers
• CROSSMEMBERS: 4″ X 3″ X 1/4″ Angle Iron On 24″ Centers
• FLOOR: #1 Pres Treated/2″X8″ Pine Double Screwed/Per/Run
• UNDERCOATING: Completely Coated w/A Durable Protective Finish
