Description

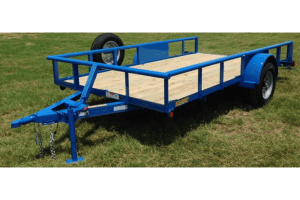

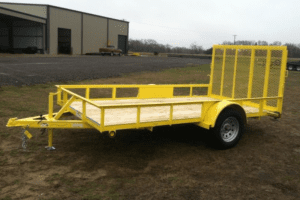

Kearney Trailers Bumper Single Axle Standard Duty Angle Top Utility Trailer

• COUPLER: 2″ – 7K Ram with Coupler Hole Cover Plate
• SAFETY CHAIN: 1/4″ Chain with Safety Hooks
• JACK: 2K Top Wind with Interchangeable Pin-On Sand Foot
  Jack is set back for tailgate opening clearance
• PLUG: 4-Way Molded Plug Harness, Grounded to Frame
• LIGHTS: “LED” Rubber Mounted Running, Stop, Turn & Clearance
• FENDERS: 9″ x 32″ Rolled Smooth with Smooth Backing Plates
• SUSPENSION: 4-Leaf Eye-to-Eye Springs System
• AXLES: One 3.5K Dexter Idler, Cambered with Accu-Lube Hubs
• TIRES: New ST-205-75-R-15″ Radials, Load Range “C”, 6-Ply
• WHEELS: 5-Hole Powder Coated Silver Mods, GM-5″-BP
• TONGUE:
  – 5′ x 12′ & Smaller: 3″ x 2″ x 3/16″ Angle Iron
  – 5′ x 14′ & All 77″ & 93″ Wides: 4″ Channel Iron
• FRAME: 3″ x 2″ x 3/16″ Angle Iron
• CROSS MEMBERS: 3″ x 2″ x 3/16″ Angle Iron
• UPRIGHTS: 2″ x 2″ x 1/8″ Angle Iron
• TOP RAIL: 2″ x 2″ x 1/8″ Angle Iron Square Ends with Board Holders
• FLOOR: #1 Pressure Treated 2″ x 8″ Pine, Double Screwed Per Run
• TIE DOWNS: Four Stake Pockets, One on Each Corner
• STICKERS: Warning, Safety, and Reflective Kearney Logos
• EXT. FINISH: Painted with a Newly Innovated Durable High Gloss Acrylic Polyurethane Full Two-Component Finish
• TOP UNDERCOATING: Completely Coated with a Durable Protective Finish
• TRIM: Array of Many Colors to Choose From
• WARRANTY: A Limited Two-Year Kearney Guarantee
